DIAL THICKNESS GAUGES
| MODEL | GRADUATION | RANGE | READING | ANVIL DIA. |
|---|---|---|---|---|

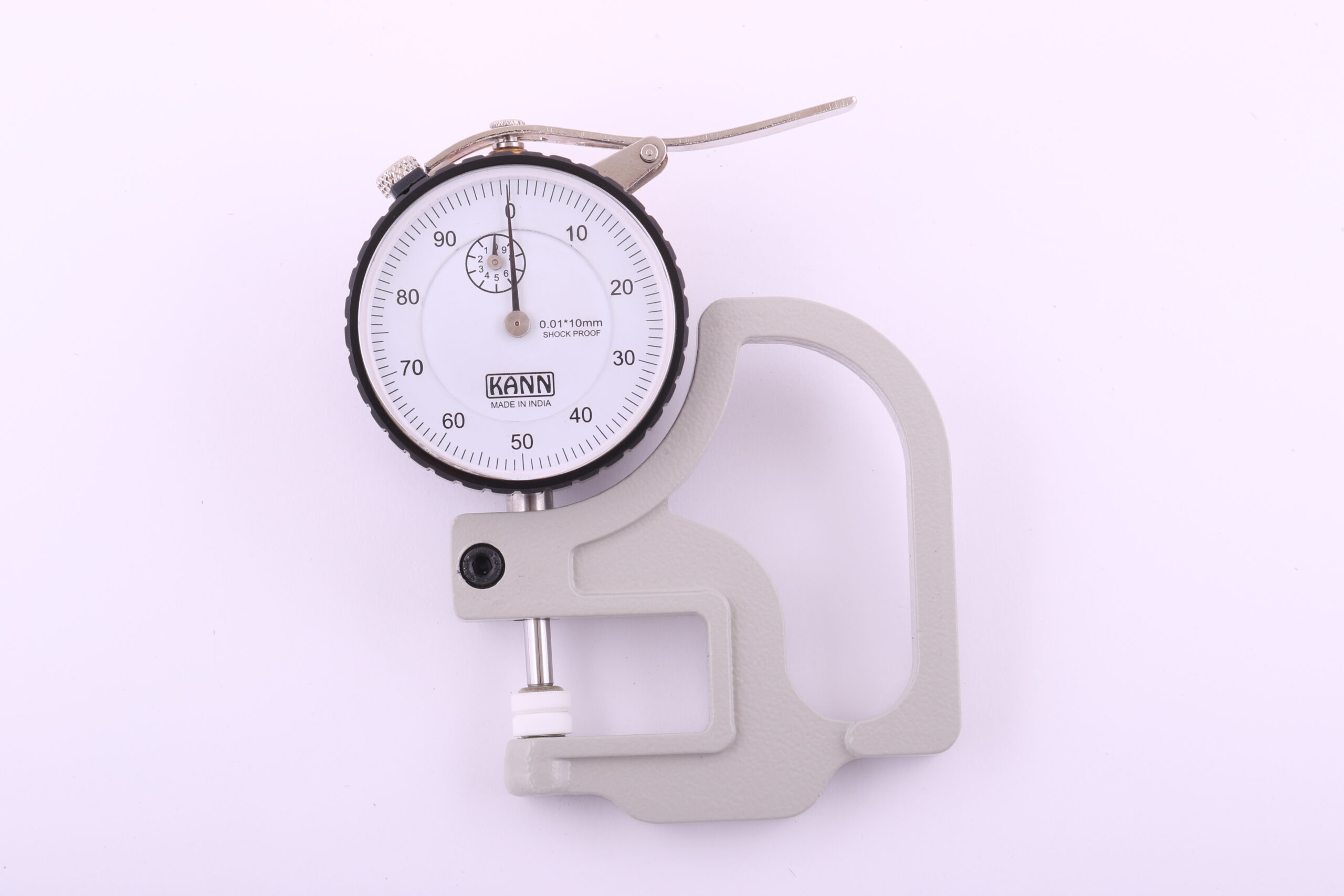

| TG1 | 0.01mm | 10 mm | 0 - 100 | 10mm /CERAMIC |
| TG1/20 | 0.01mm | 10 mm | 0 - 100 | 20mm /METAL |
| TG2 | 0.001mm | 1 mm | 0 - 200 | 10mm /CERAMIC |
| TG3 | 0.1mm | 10 mm | 0 - 10 | 10mm /CERAMIC |

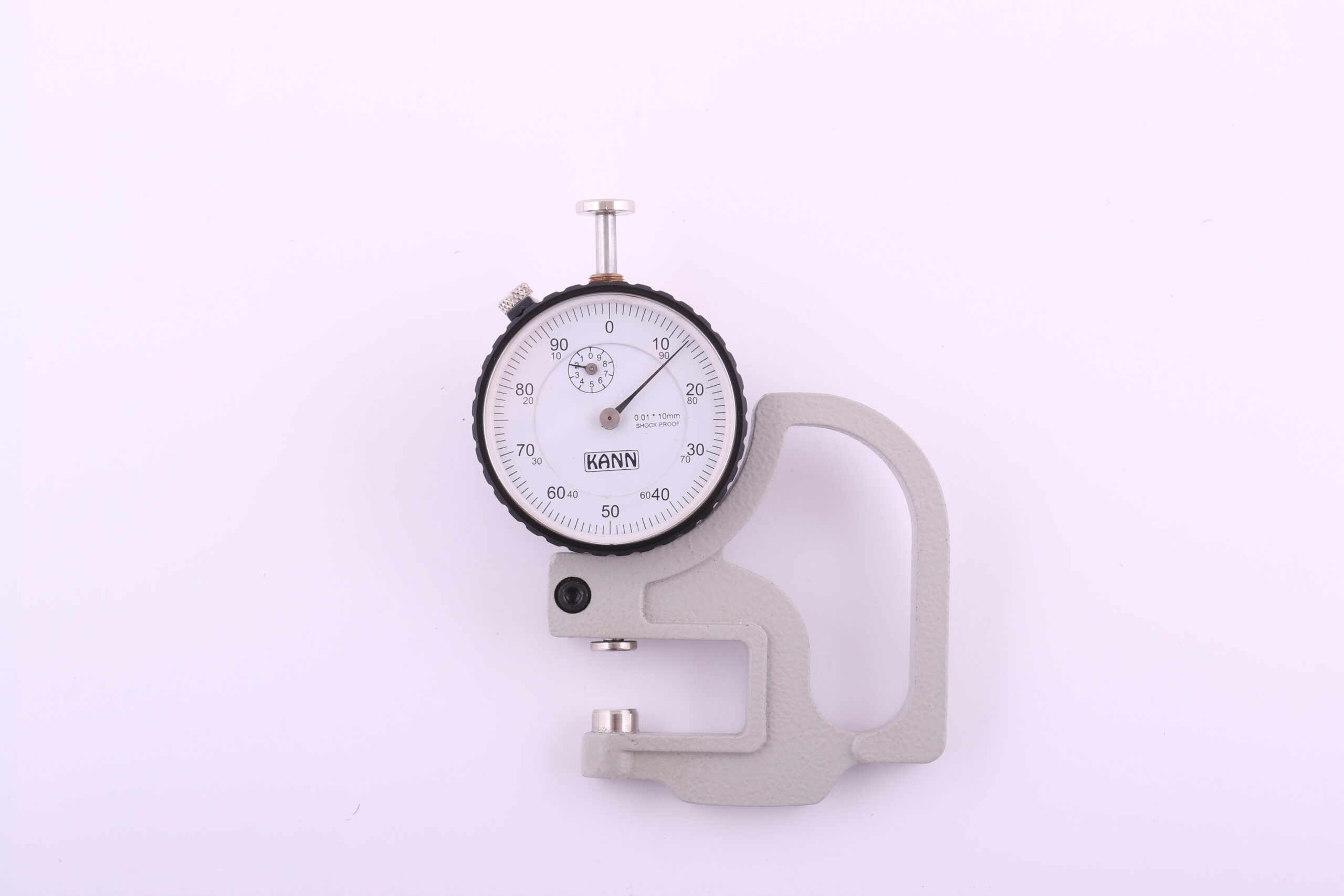

| TG4 | 0.01mm | 10 mm | 0 - 100 | 10mm /CERAMIC |

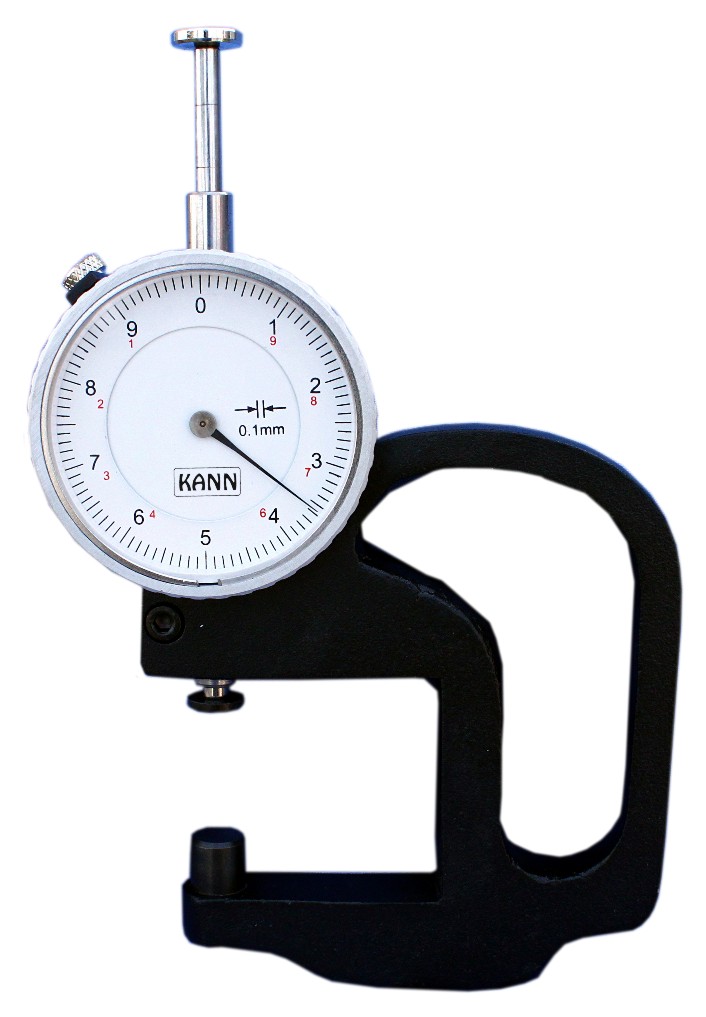

| TG5/10 | 0.1mm | 25 mm | 0 - 10 | 10mm /METAL |
| TG5/20 | 0.1mm | 25 mm | 0 - 10 | 20mm /METAL |
| TG9 | 0.01mm | 25 mm | 0 - 100 | 10mm /CERAMIC |
| TG9/20 | 0.01mm | 25 mm | 0 - 100 | 20mm /METAL |
| TG7 | 0.1mm | 30 mm | 0 - 10 | 10mm /CERAMIC |
| TG7/20 | 0.1mm | 30 mm | 0 - 10 | 20mm /METAL |
| TG8 | 0.01mm | 30 mm | 0 - 100 | 10mm /CERAMIC |
| TG8/20 | 0.01mm | 30 mm | 0 - 100 | 20mm /METAL |
DIAL THICKNESS GAUGE (ANALOGUE) THROAT DEPTH 150 mm / 6"
| MODEL | GRADUATION | RANGE | READING | ANVIL DIA. |
|---|---|---|---|---|
| TG16 | 0.1mm | 10 mm | 0 - 10 | 10mm /CERAMIC |
| TG17 | 0.01mm | 10 mm | 0 - 100 | 10mm /CERAMIC |
| TG34 | 0.01mm | 25 mm | 0 - 100 | 10mm /CERAMIC |
| TG18 | 0.1mm | 30 mm | 0 - 10 | 10mm /CERAMIC |
| TG19 | 0.01mm | 30 mm | 0 - 100 | 10mm /CERAMIC |
| TG16/20 | 0.1mm | 10 mm | 0 - 10 | 20mm /METAL |
| TG17/20 | 0.01mm | 10 mm | 0 - 100 | 20mm /METAL |
| TG34/20 | 0.01mm | 25 mm | 0 - 100 | 20mm /METAL |
| TG18/20 | 0.1mm | 30 mm | 0 - 10 | 20mm /METAL |
| TG19/20 | 0.01mm | 30 mm | 0 - 100 | 20mm /METAL |
| TG33 | 0.001mm | 1 mm | 0 - 100 - 0 | 10mm /CERAMIC |
PEARL GAUGE
| MODEL | GRADUATION | RANGE | READING | ANVIL DIA. |
|---|---|---|---|---|
| TG10 | 0.1mm | 10 mm | 0 - 10 | 10mm /METAL |
| TG20 | 0.1mm | 20 mm | 0 - 10 | 10mm /METAL |
DIAL THICKNESS GAUGE (ANALOGUE) THROAT DEPTH 300 mm / 12"
| MODEL | GRADUATION | RANGE | READING | ANVIL DIA. |
|---|---|---|---|---|
| TG11 | 0.1mm | 10 mm | 0 - 10 | 10mm /CERAMIC |
| TG12 | 0.01mm | 10 mm | 0 - 100 | 10mm /CERAMIC |
| TG15 | 0.01mm | 25 mm | 0 - 100 | 10mm /CERAMIC |
| TG13 | 0.1mm | 25 mm | 0 - 10 | 10mm /CERAMIC |
| TG14 | 0.01mm | 30 mm | 0 - 100 | 10mm /CERAMIC |
| TG11/20 | 0.1mm | 10 mm | 0 - 10 | 20mm /METAL |
| TG12/20 | 0.01mm | 10 mm | 0 - 100 | 20mm /METAL |
| TG15/20 | 0.01 mm | 25 mm | 0 - 100 | 20mm /METAL |
| TG13/20 | 0.1 mm | 25 mm | 0 - 10 | 20mm /METAL |
DIAL THICKNESS GAUGE (ANALOGUE) THROAT DEPTH 450mm / 18"
| MODEL | GRADUATION | RANGE | READING | ANVIL DIA. |
|---|---|---|---|---|
| TG21 | 0.1mm | 10 mm | 0 - 100 | 10mm /CERAMIC |
| TG22 | 0.01mm | 10 mm | 0 - 100 | 10mm /CERAMIC |
| TG35 | 0.01mm | 25 mm | 0 - 100 | 10mm /CERAMIC |
| TG23 | 0.1mm | 30 mm | 0 - 100 | 10mm /CERAMIC |
| TG24 | 0.01mm | 30 mm | 0 - 100 | 10mm /CERAMIC |
| TG27 | 0.01mm | 50 mm | 0 - 100 | 10mm /CERAMIC |
| TG21/20 | 0.1mm | 10 mm | 0 - 100 | 20mm /METAL |
| TG22/20 | 0.01mm | 10 mm | 0 - 100 | 20mm /METAL |
| TG35/20 | 0.01mm | 25 mm | 0 - 100 | 20mm /METAL |
| TG23/20 | 0.1mm | 30 mm | 0 - 100 | 20mm /METAL |
| TG24/20 | 0.01mm | 30 mm | 0 - 100 | 20mm /METAL |
| TG27/20 | 0.01mm | 50 mm | 0 - 100 | 20mm /METAL |
DIAL THICKNESS GAUGE (ANALOGUE) THROAT DEPTH 600mm / 24"
| MODEL | GRADUATION | RANGE | READING | ANVIL DIA. |
|---|---|---|---|---|
| TG28 | 0.1mm | 10 mm | 0 - 100 | 10mm /CERAMIC |
| TG29 | 0.01mm | 10 mm | 0 - 100 | 10mm /CERAMIC |
| TG36 | 0.01mm | 25 mm | 0 - 100 | 10mm /CERAMIC |
| TG30 | 0.01mm | 30 mm | 0 - 100 | 10mm /CERAMIC |
| TG31 | 0.1mm | 30 mm | 0 - 100 | 10mm /CERAMIC |
| TG32 | 0.01mm | 30 mm | 0 - 100 | 10mm /CERAMIC |
| TG27 | 0.01mm | 50 mm | 0 - 100 | 10mm /CERAMIC |
| TG28/20 | 0.1mm | 10 mm | 0 - 100 | 20mm /METAL |
| TG29/20 | 0.01mm | 10 mm | 0 - 100 | 20mm /METAL |
| TG36/20 | 0.01mm | 25 mm | 0 - 100 | 20mm /METAL |
| TG30/20 | 0.01mm | 30 mm | 0 - 100 | 20mm /METAL |
| TG31/20 | 0.1mm | 30 mm | 0 - 100 | 20mm /METAL |
| TG32/20 | 0.01mm | 50 mm | 0 - 100 | 20mm /METAL |
PIPE THICKNESS GAUGE
| MODEL | GRADUATION | RANGE | READING |
|---|---|---|---|
| TG6 | 0.01mm | 10 mm | 0 - 100 |
| ETG6 | 0.01mm | 12.5 mm / 0.5, DIGITAL MODEL | |
| TG6/A | 0.01mm | 10 mm | 0 - 10 |
